Piston seal 80 x 62 x 22,5/3,6 K518X 080-062 NBR / TPE / POM, Kastas
Code: SKL_M069220
Product detailed description

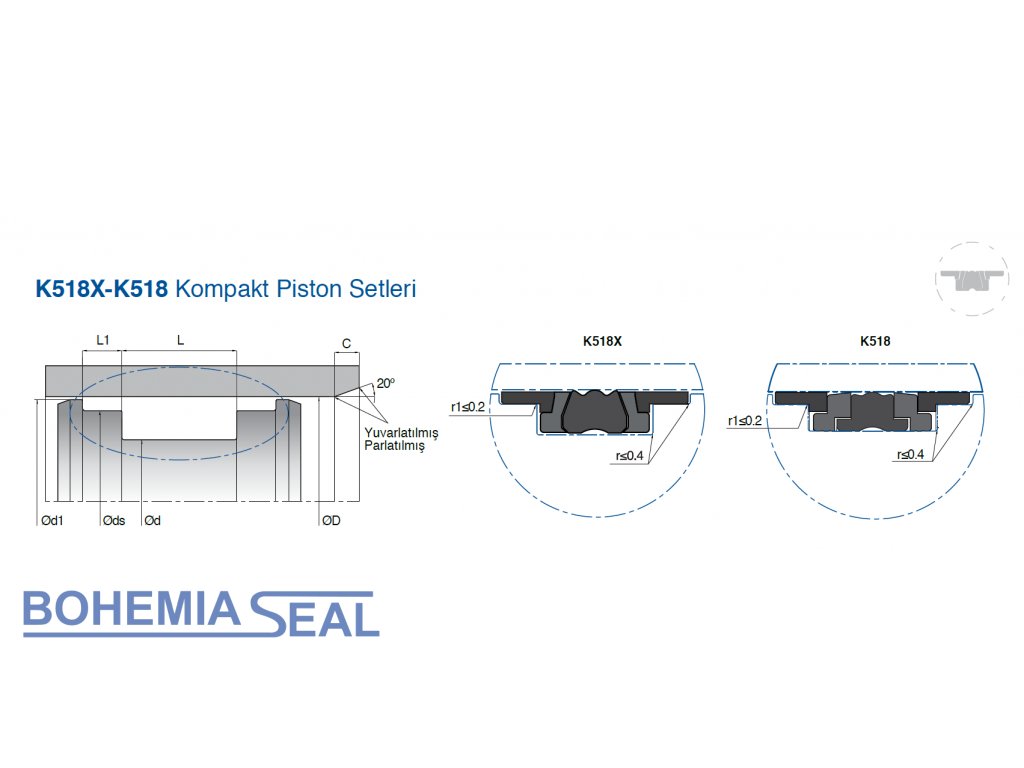

The K518 double-acting piston seal is a piston seal consisting of one NBR profile ring, two thermoplastic elastomer support rings and two glass-reinforced POM guide rings. K518 is widely preferred in mobile machines where glass reinforced POM guide rings provide better load bearing properties in longer stroke cylinders.
Advantages < /p>
- Excellent sealing performance and low friction due to special construction < /span>
- Excellent load capacity thanks to special reinforced material for the guide ring < /span>
- No additional guide ring requirements for light and medium duty applications thanks to compact design
- Simple groove in one-piece piston < /span>
- long life and easy installation
Use area
- Agricultural machinery
- Construction Machinery
- Mobile Machines
- Loading platforms
- Forklifts
The K518X double-acting piston seal is a high-performance compact piston seal that consists of one NBR profile ring, two thermoplastic elastomer support rings and two glass-reinforced PA guide rings.< /span> "" jsname=""txFAF"" class=""JLqJ4b ChMk0b"" jscontroller=""Zl5N8"">Among similar double-acting piston seals, the K518X features a new TPE back-up ring design with a special geometry that increases extrusion resistance under variable pressures of mobile hydraulic applications, and glass-reinforced PA guide rings fibers that provide higher load capacity at higher temperatures.
Advantages < /p>
- Maximum extrusion resistance thanks to special TPE support rings < /span>
- Better heat resistance with PA guide rings < /span>
- Advanced Performance for Long Stroke Cylinders
Use area
- Agricultural machinery
- Construction Machinery
- Mobile Machines
- Loading platforms
- Forklifts
