guide ring 79 x 85 x 12,5 POM, K69, Kastas (K69-085/1)

Code: SKL_GUIR005920
Brand: Kastas
€1,06 €0,88 excl. VAT
Stock (4 pcs)
Delivery to:
25/11/2024
Delivery offer

K69 is leading glass fiber reinforced POM ring, intended for general use in hydraulic applications. The composition of glass fibers in the material increases the carrying capacity of the guide element.



Detailed information

Fast delivery
Fast delivery
Optimized Inventory
Guaranteed quality
Guaranteed quality
We cooperate with renowned manufacturers all over the world
Technical support available
Technical support available
We cooperate with manufacturers' engineers to solve technical problems

Product detailed description

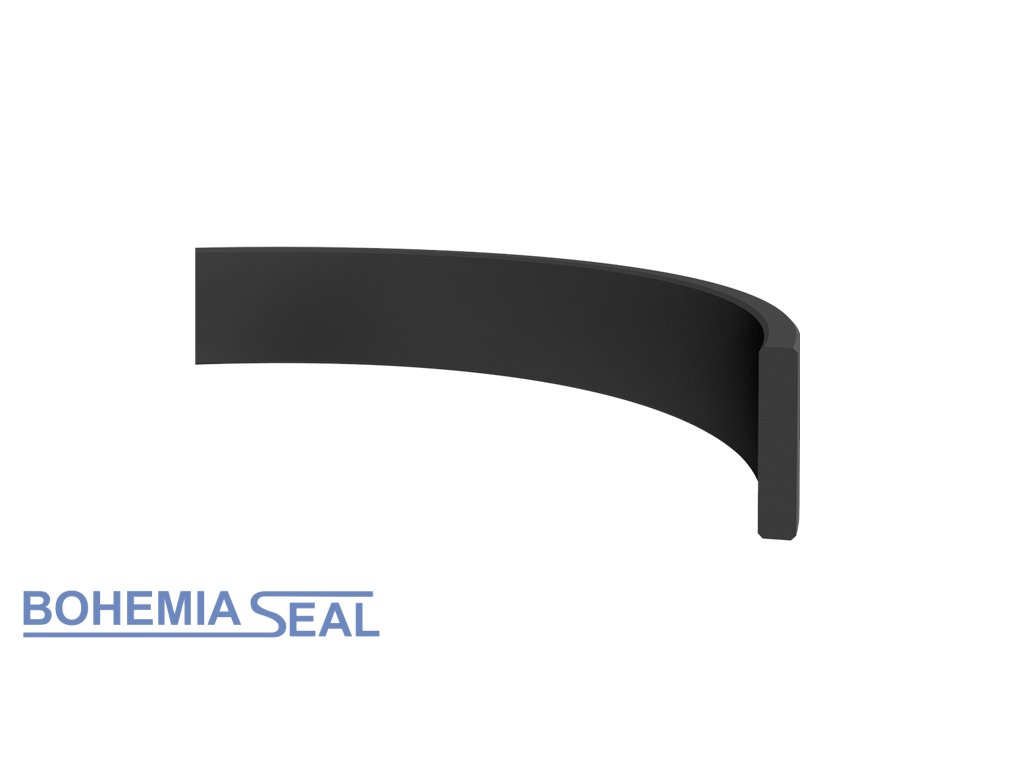

K69 is a glass fiber reinforced POM guide ring designed for general use in hydraulic applications. The composition of glass fibers in the material increases the carrying capacity of the guide element.

Advantages

  • Easy Installation
  • High dimensional stability in the operating temperature range
  • Wide range of dimensions

Use area

  • Agricultural machines
  • Mobile Machines
  • Industrial cylinders
  • Light and medium cylinders

Additional parameters

Category: Guide rings
? Thickness of the guide ring: 3
? Guide ring tape height: 12,5
? Inner diameter of the guide ring: 79
? Outer diameter of the guide ring: 85
? Guide tape / guide ring model: K69
? Guide tape material/ guide ring material: POM
Úroveň kvality: výkon
