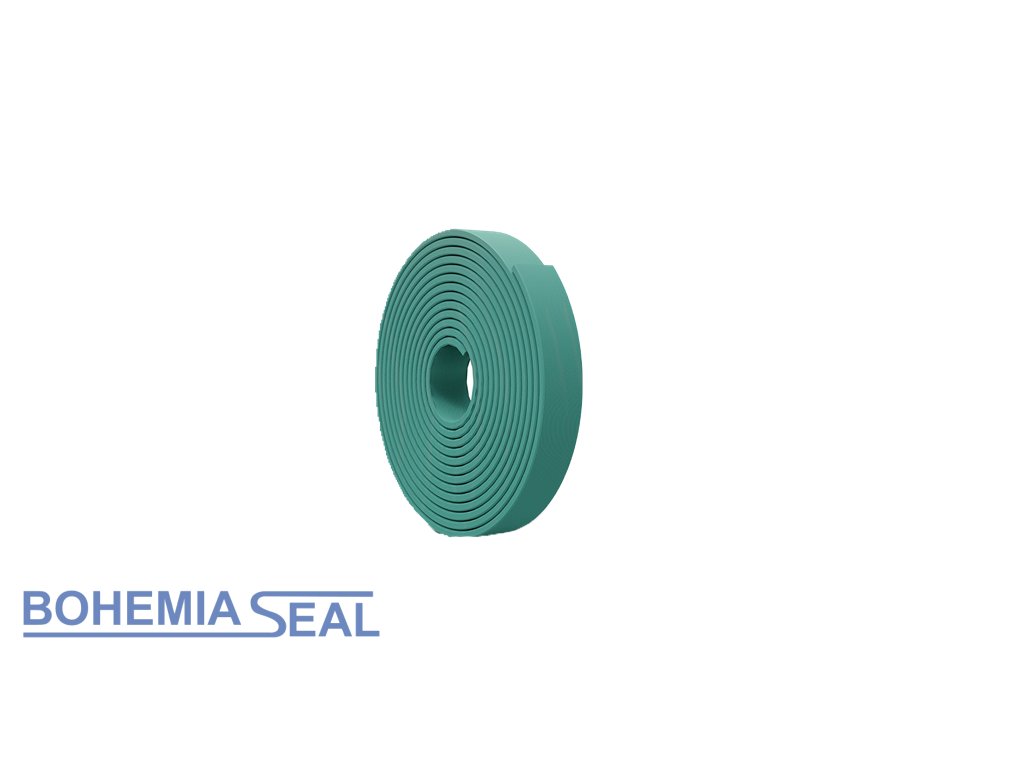

Guide belt 20 x 4 Polyester fabric-phenolic resin-PTFE, KPB, Kastas (KPB)
Code: SKL_GUST016730
Fast delivery
Optimized Inventory
Guaranteed quality
We cooperate with renowned
manufacturers all over the world
Technical support available
We cooperate with manufacturers' engineers to solve technical problems
Product detailed description

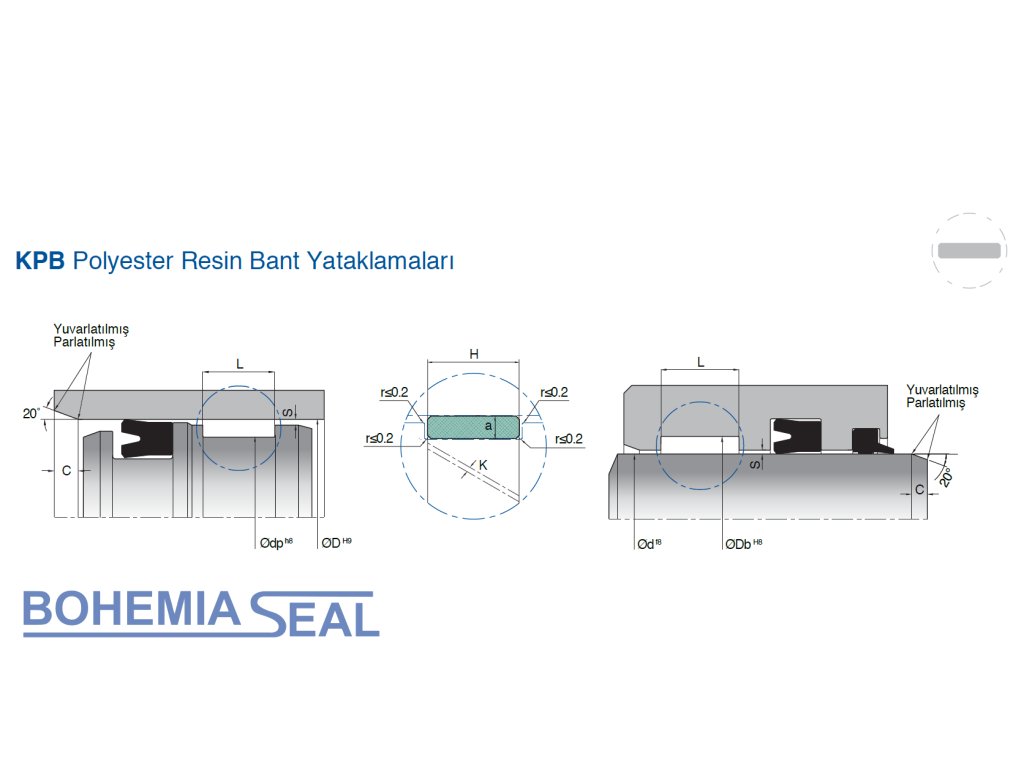

KPB Piston and Rod Guide Bands are composite guides made of synthetic fabric and polyester resin that provide high load capacity and are designed for use in both piston and rod applications in hydraulic systems.
Advantages
- Low friction coefficient
- High payload
- High dimensional stability in the operating temperature range
- Low bloat
- Wide range of dimensions
Usage area
- Mobile Machines
- Mining industry
- Excavators
- Ship hydraulics
- Presses
- Heavy cylinders
Additional parameters
| Category: | Guide tapes |
|---|---|
| ? Thickness of the guide ring: | 4 |
| ? Guide ring tape height: | 20 |
| ? Guide tape / guide ring model: | KPB |
| ? Guide tape material/ guide ring material: | Polyesterová tkanina-fenolová pryskyřice-PTFE |
| Úroveň kvality: | výkon |
| The item has been sold out… | |
