Oil seal 80 x 96 x 9 AS ACM LEFT HELIX (TCL PB701) , NAK
Code: SKL_G166070
Fast delivery
Optimized Inventory
Guaranteed quality
We cooperate with renowned
manufacturers all over the world
Technical support available
We cooperate with manufacturers' engineers to solve technical problems
Product detailed description
Rotary shaft seal (gufero, simering) serves to separate two media.

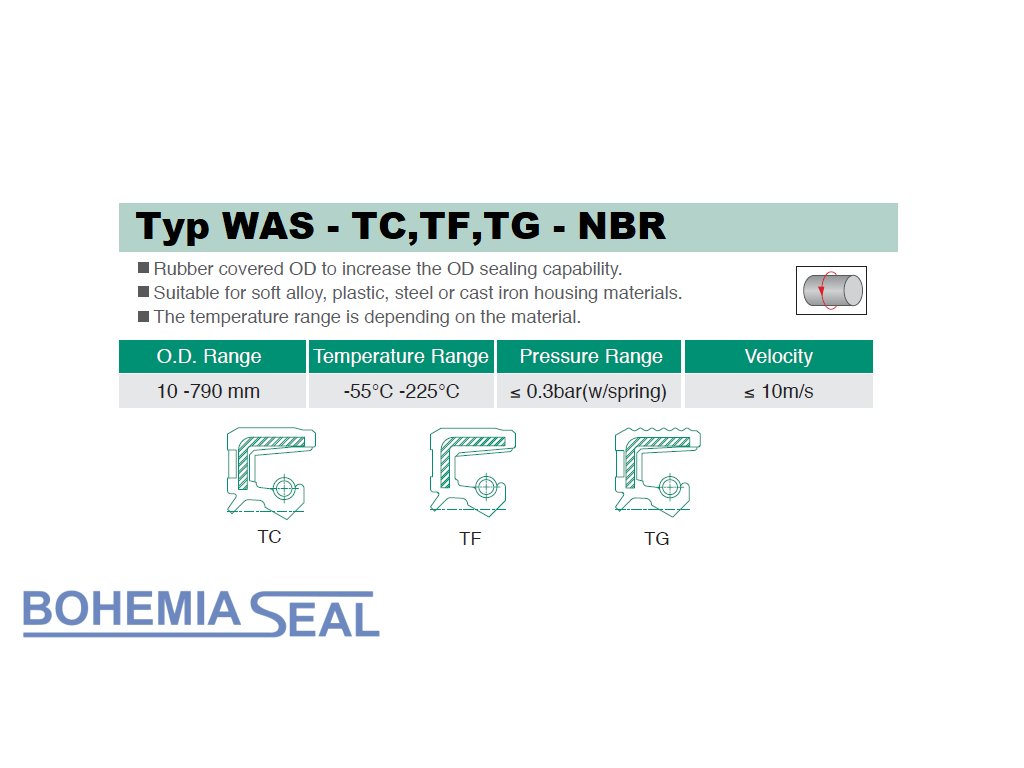

WAS type - TC, TG, TF, TO is a type with rubberized mantle, with dust blade.
Left-handed guffers have discharge grooves on them, which, during left-handed rotation, divert the lubricant back to the lubricated parts.
ACM material is a special material used in automotive.
NAK is the world's leading manufacturer of rotary seals, based in Taiwan, possessing all the usual certificates, from ISO9001 to TÜV to space applications, of which we are the exclusive importer in the Czech Republic and Slovakia.
Additional parameters
| Category: | Oil seals, Sevanit, Cassette seal |
|---|---|
| ? Use of rotary seals: | Oil Seal |
| ? Rotary seal model: | AS ACM LEFT HELIX (TCL PB701) |
| ? Internal diameter of rotary seal: | 80 |
| ? Outer diameter of rotary seal: | 96 |
| ? Rotary seal height: | 9 |
| ? Rotary seal material: | ACM |
| Úroveň kvality: | značkové |
| Katalogové číslo: |
